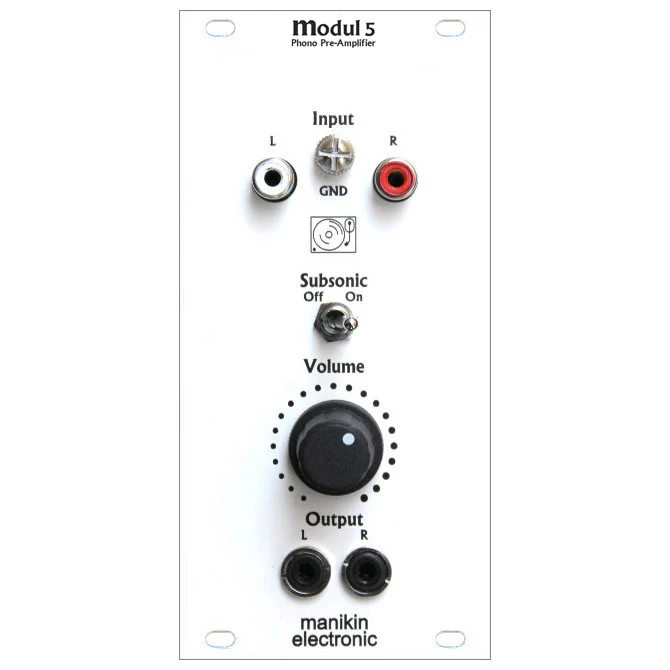

Manikin Electronic Modul 5 Phono Preamp Eurorack Module

Manikin Electronic Modul 5 is a eurorack phono pre-amplifier module for your turntable with a built-in 20Hz subsonic filter. Modul 5 supports both moving magnet (MM) and moving coil (MC) pickups.

• Module controls
• Volume knob: output volume
• Subsonic On/Off switch: enables/disables 20Hz subsonic filter
• Patch points
• L/R inputs: RCA audio inputs
• L/R outputs: audio out
• GND: turntable grounding screw
• Physical specifications
• Size: 12hp
• Module depth: 40mm
• Power usage: 25mA @ +12V, 25mA @ -12V
